Tempat asal: | Suzhou,China |
Nama merek: | SINCE-GAS |
Sertifikasi: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
Nomor model: | PO |
Kuantitas min Order: | 1 set |
---|---|
Harga: | Negotiate |
Kemasan rincian: | Normal exported wooden case |
Waktu pengiriman: | 2 months after received down payment |
Syarat-syarat pembayaran: | L/C, T/T, Western Union, MoneyGram |
Menyediakan kemampuan: | 1000 sets/year |
Kapasitas: | 5-1500 Nm3/jam | Kemurnian: | 90%-94% |
---|---|---|---|
Titik embun: | -65 ℃ | Mengoperasikan daya: | 1KW |
Operasi: | sepenuhnya otomatis | Masa hidup: | 8-10 tahun |
Konsumsi: | Hemat energi | Bahan: | Baja karbon/Baja tahan karat |
Cahaya Tinggi: | Sistem Pembangkit Oksigen Medis,Generator Oksigen Rumah Sakit,Generator Oksigen Industri untuk Pemurnian |

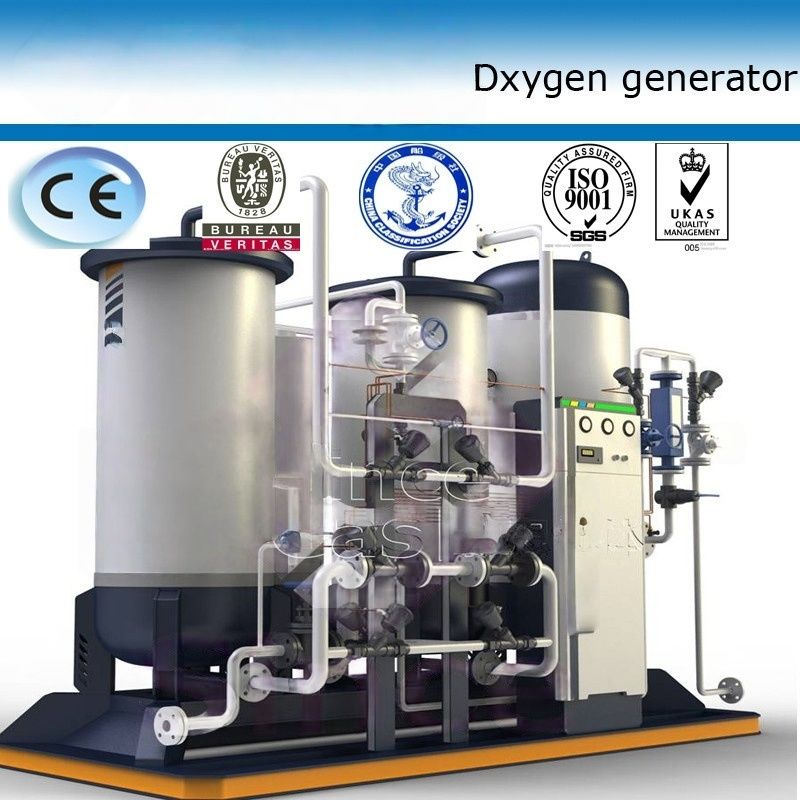

PSA Industrial Oxygen Generators for Refining , Oxygen Generation Plant
PSA oxygen generator
PSA ( Pressure Swing Adsorption) Technology a revolution in Non Cryogenic Air Separation and
Oxygen Generation Technology uses special grade of ZMS ( Zeolite Molecular Sieve).
The compressed air is passed through a Twin Tower PSA module interconnected with automatic
changeover valves. After passing through a Refrigerated Dryer air gets dried. Dried compressed air
will now come in contact with bed of Zeolite molecular sieves (ZMS). Zeolite Molecular Sieves are special
grade of adsorbent which have the property of preferential adsorption of nitrogen molecules.
At a time one tower remains under nitrogen production cycle, whereas the other tower undergoes
regeneration
which is achieved through depressurization of the tower to atmospheric pressure. The outgoing oxygen
gas is sent to a surge vessel where the minimum pressure will be maintained with the help of Back
pressure Regulator
Technical Specifications:
Capacity: 2~150 Nm3/h
Purity: 92±2%
Initial Pressure: 0.05~0.4 Mpa
Dew point: -65℃
Product Features
·Labyrinth air-flow diffusion equipment(National Invention Patent),
·Air-distribution uniformity, upgrade molecular sieve utilization ratio.
·Unique noise-abatement equipment(National Patent)
·Blameless process design,perfect usage effective.unique molecular sieve protection,extend carbon
molecular sieve's life.
·Intelligent interlocking unqualified N2 Emptying equipment, N2 quality guarantee
·Optional: N2 capacity system, purity automatic regulating system, Remote Control System etc
·Easy to operate
·Running steadily
·High automation
Application :
1. After the oxygen generator, the oxygen purification system is equipped to guarantee the quality
of the O2 and removing dust, eliminating bacteria and stabilizing pressure to ensure the oxygen
outputted stably and meeting medical standards.
2. Users only need to turn the start/stop button to gain the oxygen with designing required flow capacity
and purity within 30 minutes.
3. Single line and double lines types are available for option. Users are suggested to choose the single
line type when they only require a stable flow capacity; choose double lines when demand is unstable
and sometimes meet extra peak values.
Kontak Person: Jojo
Tel: +8613862022817
