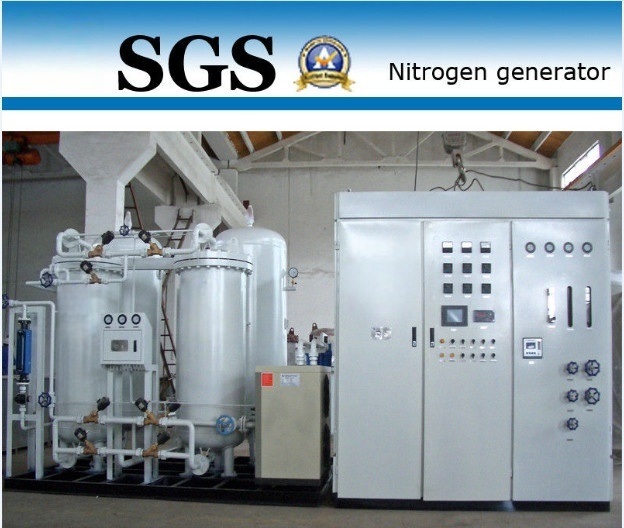

Nitrogen Generating System Industrial Nitrogen Generator Membrane for LNG Ship
Description:
(1) Nitrogen Generator
1.1) High purity
1.2) Excellent energy-saving
1.3) Smoothly running,long-life
1.4) Automatic operating
1.5) Certificate:ISO9001:2008
N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the
quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.
When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,
the N2 gas is absorbed and O2 is obtained by separation.
The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get
into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal .
When one tower produces N2, another tower release the N2 by reducing the pressure to get the
renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration to
output N2 continuously.
Specifications:
|
No
|
Model
|
Capacity(Nm3/h)
|
Purity
|
Power(KW)
|
Overall size(mm)
|
|
1
2
3
4
|
PN-3-39
PN-5-29
PN-5-295
PN-8-295
|
3
5
5
8
|
99.9%
99.5%
99%
95%
|
0.5
|
1800*1400*1500
|
|
5
6
7
8
|
PN-5-49
PN-8-39
PN-12-295
PN-15-29
|
5
8
12
15
|
99.99%
99.9%
99.5%
99%
|
0.5
|
1800*1400*1800
|
|
9
10
11
12
|
PN-10-49
PN-15-39
PN-25-295
PN-30-39
|
10
15
25
30
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2000*1700*2250
|
|
13
14
15
16
|
PN-15-49
PN-22-39
PN-35-295
PN-45-29
|
15
22
35
45
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2100*1800*2200
|
|
17
18
19
20
|
PN-20-49
PN-30-39
PN-50-295
PN-60-29
|
20
30
50
60
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2200*1800*2200
|
|
21
22
23
24
|
PN-30-49
PN-45-39
PN-75-295
PN-88-29
|
30
45
75
88
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2400*1900*2200
|
|
25
26
27
28
|
PN-40-49
PN-60-39
PN-100-295
PN-120-29
|
40
60
100
120
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2500*2100*2500
|
|
29
30
31
32
|
PN-50-49
PN-70-39
PN-120-295
PN-140-29
|
50
70
120
140
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2600*2200*2850
|
|
33
34
35
36
|
PN-60-49
PN-90-39
PN-160-295
PN-190-29
|
60
90
160
190
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2800*2200*2500
|
|
37
|
PN-80-49
|
80
|
99.99%
|
0.5
|
|
|
38
39
40
|
PN-120-39
PN-200-295
PN-250-29
|
120
200
250
|
99.9%
99.5%
99%
|
0.5
|
3200*1400*2800
|
|
41
42
43
44
|
PN-100-49
PN-140-39
PN-250-295
PN-290-29
|
100
140
250
290
|
99.99%
99.9%
99.5%
99%
|
0.5
|
3500*1500*2800
|
|
...
|
...
|
...
|
...
|
...
|
...
|
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly
|
Technical characteristics:
Low energy consumption,less cost,strong adaptability,rapid nitrogen production and adjustable purity.
Perfect technique process design and optimal using effect.
Modular structure design and saving of floor space.
Convenient operation,stable performance, high automation and unattended operation.
Reasonable inner structure,uniform distribution of airflow,reducing of high-speed impacts of the airflow .
Unique protection measure for carbon molecular sieve extends service life of the carbon molecular sieve.
Key parts adopt the famous brand,which is the effective guarantee of the equipment quality.
Automatic venting device with national patented technology ensures quality of produced nitrogen.
It has functions of diagnosis,alarming and automatic troubleshooting for several failures.
Touch-screen display,dew point detection,energy-saving control ,DCS communication,etc.are optional.
Application:
Oil tanker ship
Chemical ship
LNG ship
Oil&Gas extraction
Oil&Gas storage project
During the last 10 years,about 98% old customers firmly choose SINCE
Why they always choose SINCE?
Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom
company who got ,TS (Manufacture License of special equipment)
CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen
generator.
Excellent infrastructure set up teamed by experienced and qualified engineers.
Sophisticated and developed R&D wing in assistance for installation and use of plants.
