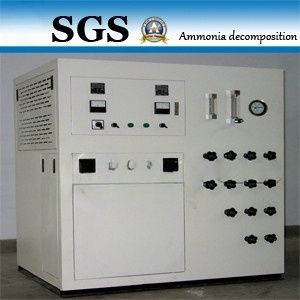

Hydrogen Maker Ammonia Cracker System , Liquid Ammonia Generator

Hydrogen Maker Ammonia Cracker System , Liquid Ammonia Generator

  • Hydrogen Maker Ammonia Cracker System , Liquid Ammonia Generator
Hydrogen Maker Ammonia Cracker System , Liquid Ammonia Generator
Detail produk:
Tempat asal: Suzhou,China
Nama merek: SINCE-GAS
Sertifikasi: CE,ABS,CCS,BV,DNV,ASME,GOST,
Nomor model: ANH
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Negotiate
Kemasan rincian: Nomal exported wooden case
Waktu pengiriman: 2 months after received down payment
Syarat-syarat pembayaran: L/C, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 1000 sets/year
Kontak
Detil Deskripsi produk
Bahan: Baja Karbon / Baja Tahan Karat Kapasitas: 5-10000 Nm3/jam
Titik embun: -70 Pasokan Daya: 380V/415V/460V/60/50Hz
Daya Operasi: 2-200KW Bahan baku: Amonia Cair
Cahaya Tinggi:

Cracking Amonia

,

Generator Gas Amonia

,

Pembuat Hidrogen Amonia Cracker



Hydrogen Maker Ammonia Cracker System , Liquid Ammonia Generator





Hydrogen is indispensable for the bright hardening of metals. But, viewed from the standpoint of safety,

hydrogen gas is by no means an advantageous atmosphere. Dissociated ammonia atmosphere or

forming gas is the only furnace atmosphere that can make up the demerits of hydrogen and function

nearly 100% as if it were hydrogen gas. There are cases where forming gas cannot replace pure

hydrogen, but such cases are very rare. For almost all applications involved, forming gas atmosphere

will answer the purpose.

An ammonia cracker, NH3-Cracker or hydrogen generator is used for the production of forming gas. Hydrogen

 and Nitrogen are

generated in a cost effective way in a volume ratio of 3 : 1 or in a weight ratio of 14 : 3. Capacities from

5m3/h to 60m3/h are available.

The NH3 is coming from bottles or from an ammonia tank. The ammonia gas is preheated in a heat

exchanger and vaporizer and then cracked in the main furnace unit. The furnace is electrically

heated by special LGO heating elements.



Hydrogen Maker Ammonia Cracker System , Liquid Ammonia Generator 0

The dissociation of ammonia gas NH3 takes place at a temperature of 920°C in the presence of a

special nickel catalyst in an electrically heated furnace.
2NH3-N2 + 3 H2
The cracked gas then passes the heat exchanger for cooling and for preheating the incoming gas.

This way and in combination with the low power consuming LGO heating

elements, it can be made sure that only a minimum of electricity has to be used for the cracking process.



Technical figures;



The gas made in this method is a good protective gas which can be used widely in semiconductor

industry, metallurgical industry and other industries and science research which need protective gas.
1. Ammonia is easy to decompose: With not very high pressure, under catalysts, and

a temperature controlled at 750~800ºC, the ammonia will nearly completely decompose, with the

decomposing rate reaching 99.9%.
2. Easy to refine the gas: As the raw material, the liquid ammonia is of very high purity. The volatile

impurities are only little inert gas and water dissolved in the liquid ammonia and there is nearly no

oxygen. Meanwhile, under such conditions, the ammonia decomposition is irreversible. So the water

can be removed by adsorbing with a dew point of -60 ºC while the gas doing through the 5A molecular

sieve. By this way, the nonmetallic elements, for example, chlorine and oxygen which are unpopular in

semiconductor industry can be removed.
3. In China, the liquid ammonia as raw material is accessible at a low price and the raw material

consumption is also relatively smaller( In theory, each Kg of ammonia can create 2.64 Nm3 mixed gas).



During the last 10 years,about 98% old customers firmly choose SINCE?



Many years of experience and expertise in manufacturing and supplying gas plants;

,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom

company who got ,TS (Manufacture License of special equipment)

CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen

generator.

Excellent infrastructure set up teamed by experienced and qualified engineers.

Sophisticated and developed R&D wing in assistance for installation and use of plants.
