High Purity PSA Nitrogen Generator Equipped With Bell Type Furnace

High Purity PSA Nitrogen Generator Equipped With Bell Type Furnace

    • High Purity PSA Nitrogen Generator Equipped With Bell Type Furnace
  • High Purity PSA Nitrogen Generator Equipped With Bell Type Furnace

    Detail produk:

    Place of Origin: Suzhou,China
    Nama merek: SINCE-GAS
    Sertifikasi: CE,ABS,CCS,BV,DNV,ASME,GOST,
    Model Number: NP-C

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 1 set
    Harga: Negotiate
    Packaging Details: Normal exported wooden case
    Delivery Time: 2 months after received down payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 1000 sets/year
    Kontak
    Detil Deskripsi produk
    Capacity: 100-5000Nm3/h Purity: >99.9995%
    Dew point: -70℃ Application: Cold rolling sheet/steel,galvanizing line,cooper production
    Cahaya Tinggi:

    Natural Gas Purification

    ,

    Gas Purifier System

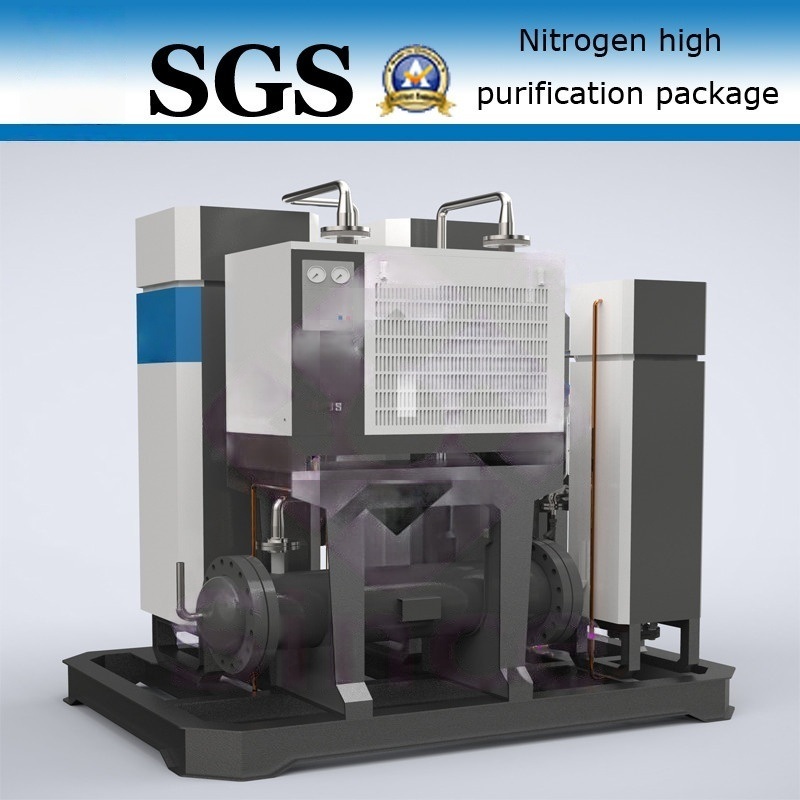

    High Purity PSA Nitrogen Generator Equipped With Bell Type Furnace





    Description:



    No

    Item

    Specs

    Notes

    1

    Purity

    >99.9995%



    2

    Pressure

    ≤5bar

    Adjustable

    3

    Dew point

    ≤-70degree

    Even lower

    4

    Oxygen content

    ≤3ppm



    5

    Capacity

    5-5000 Nm3/h



    6

    Producing method

    Plus carbon

    Via Carbon remove O2



    Principle:



    O2+C——CO2

    Taking oxygen &carbon can make CO2 principle under the catalyzator function, offering nitrogen put

    through oxygen eliminate device which full of high efficiency carbon deoxidant, eliminating oxygen etc

    impurity, after absorb dryer Carbon to get high purity nitrogen. Carbon deoxidant is the key part of

    Eliminating oxygen, while palladium etc noble metal is the key in catalyzator,make sure we can get

    proper oxygen content at the certain temperature.



    Characteristics:



    1) Convenient and efficient to generate nitrogen: Advance technology, special gas flow distributor

    to make the gas distribute more well distributed, high efficient use of CMS, qualified nitrogen can be

    offered within 15 to 30 minutes.
    2) Convenient use: The equipment structure is compact, low space coverage and no need of

    construction investment, low investment, the only thing to do is to connect power to generate nitrogen.
    3) More economical than other ways of nitrogen supply: PSA technology is a simple way to generate

    nitrogen. It takes air as source, and the only energy consumption is only electricity consumption. So it

    has the advantages of low operation cost, low energy consumption and high efficiency.
    4) Electromechanical integrated design to realize automatic operation: Imported PLC control the full

    automation, the flow rate, pressure and purity of nitrogen can be regulated and displayed consecutively;

    No personnel is needed to be on duty.



    Technical Index :



    Normal Nitrogen

    Pressure: 5-8bar

    Dew point(ASM):≤-40degree

    Oxygen content :≤1%

    Capacity :5~5000Nm3/h



    High Purity PSA Nitrogen Generator Equipped With Bell Type Furnace 0



    Application:



    1. Metallurgy: For anneal protection, agglomeration protection, furnace washing and blowing ,etc.

    Used in fields such as metal heating treatment, powder metallurgy, magnetic material,copper process,

    metallic mesh, galvanized wire, semiconductor, etc.

    2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement,

    gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber,

    plastic, tyre, polyurethane, biological technology, intermediate, etc.

    3.Electronic industry: For encapsulation, agglomeration, anneal, deoxygenation, storage of electronic

    products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic

    porcelain, electronic copper tape, battery, electronic alloy material, etc.
