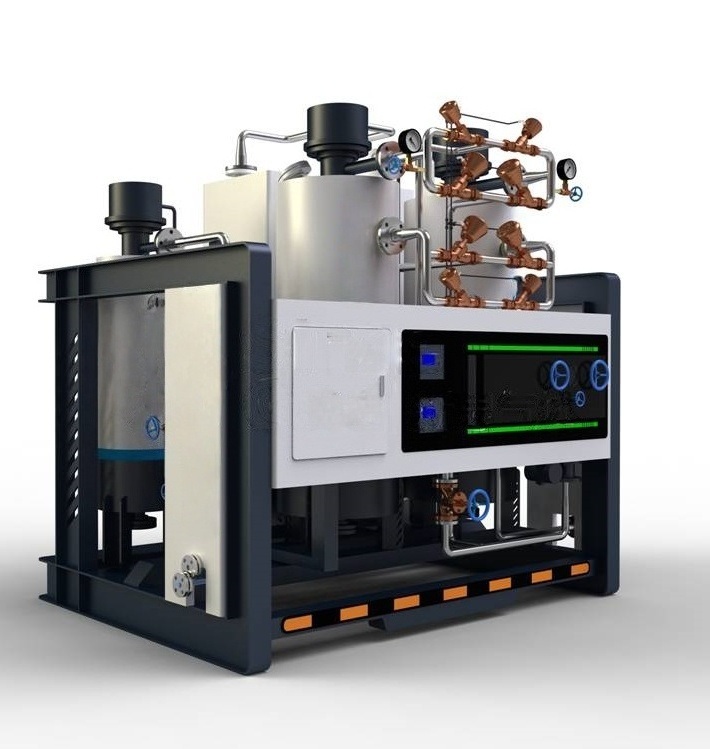

Automatic Hydrogen Type PSA Nitrogen Purification System for Cold Rolling Sheet

Automatic Hydrogen Type PSA Nitrogen Purification System for Cold Rolling Sheet

  • Automatic Hydrogen Type PSA Nitrogen Purification System for Cold Rolling Sheet
Automatic Hydrogen Type PSA Nitrogen Purification System for Cold Rolling Sheet
Detail produk:
Place of Origin: Suzhou,China
Nama merek: SINCE-GAS
Sertifikasi: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: NP-C
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/year
Kontak
Detil Deskripsi produk
Kapasitas: 100-5000Nm3/jam Kemurnian: >99,9995%
Titik embun: -70 ℃ Aplikasi: Lembaran / baja rolling dingin, garis galvanis, produksi cooper
Prinsip: H2+02=H20
Cahaya Tinggi:

Pemurnian Gas Alam

,

Sistem Filtrasi Gas

,

Sistem Pemurnian Nitrogen Tipe Hidrogen



Automatic Hydrogen Type PSA Nitrogen Purification System for Cold Rolling Sheet





Description:



No

Item

Specs

Notes

1

Purity

>99.9995%



2

Pressure

≤6bar

Adjustable

3

Dew point

≤-70℃

Even lower

4

Oxygen content

≤3ppm



5

Capacity

5-5000 Nm3/h



6

Producing method

Plus hydrogen

H2+ O2=H2O reaction



Principle:



O2+H2——H2O

Via Oxygen and Hydrogen can make water under the catalyzator function, Plus the Hydrogen into

Nitrogen, the mixed gas will make reaction in the oxygen eliminating equipment which will full of high

efficiency catalyzator, to eliminate oxygen etc impurity, absorbing the double time dry principle to

eliminate water , getting the high purity Nitrogen. catalyzator will be the crucial part during the whole

eliminating oxygen process, while palladium etc noble metal is the key in catalyzator, therefore we also

called catalyzator for palladium catalyzator. Also called Palladium catalyst.



Characteristics:



1. The gas contain excessive Hydrogen , quite suitable for reduction gas application, the hydrogen

content can be controlled
2. Simply principle, perfect structure,low power consumption

3 .Stable gas index, lower impurity

4. Automatic system alternatively, without people working on duty.

5. Widely application, no special requirements to raw material gas.



Technical Index :

No

Item

Specs

Notes

1

Operate pressure

6 bar

Adjustable

2

Dew point

-70 ℃

Even lower

3

Oxygen content

≤3 ppm



4

Hydrogen content

0.1%~5%



5

Capacity

5-5000Nm3/h



6

Purity

>99.9995%





Automatic Hydrogen Type PSA Nitrogen Purification System for Cold Rolling Sheet 0



Application:



1. Metallurgy: For anneal protection, agglomeration protection, furnace washing and blowing ,etc.

Used in fields such as metal heating treatment, powder metallurgy, magnetic material,copper process,

metallic mesh, galvanized wire, semiconductor, etc.

2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement,

gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber,

plastic, tyre, polyurethane, biological technology, intermediate, etc.

3.Electronic industry: For encapsulation, agglomeration, anneal, deoxygenation, storage of electronic

products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic

porcelain, electronic copper tape, battery, electronic alloy material, etc.
