Suzhou Since Gas System Co.,Ltd
Provide reliable service&products for gas field,push industry civilization progress!
 |
| Tempat asal: | Suzhou, China |
| Nama merek: | SINCE |
| Sertifikasi: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Nomor model: | PN |
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | Negotiate |
| Kemasan rincian: | Exported wooden case |
| Waktu pengiriman: | 2 months after received down payment |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union, MoneyGram |
| Menyediakan kemampuan: | 1000 sets /per year |
| Bahan: | Baja karbon/Baja tahan karat | Sertifikat: | BV,,CCS,ISO,TS |
|---|---|---|---|
| Kapasitas: | 5-5000 Nm3/jam | Kemurnian: | 95%-99,9995% |
| Titik Embun: | -70 ℃ | Mengoperasikan daya: | 1KW |
| Aplikasi: | Industri makanan | ||
| Cahaya Tinggi: | pabrik nitrogen,generator gas nitrogen psa,Sistem Pembangkit Nitrogen Psa Industri Makanan |
||

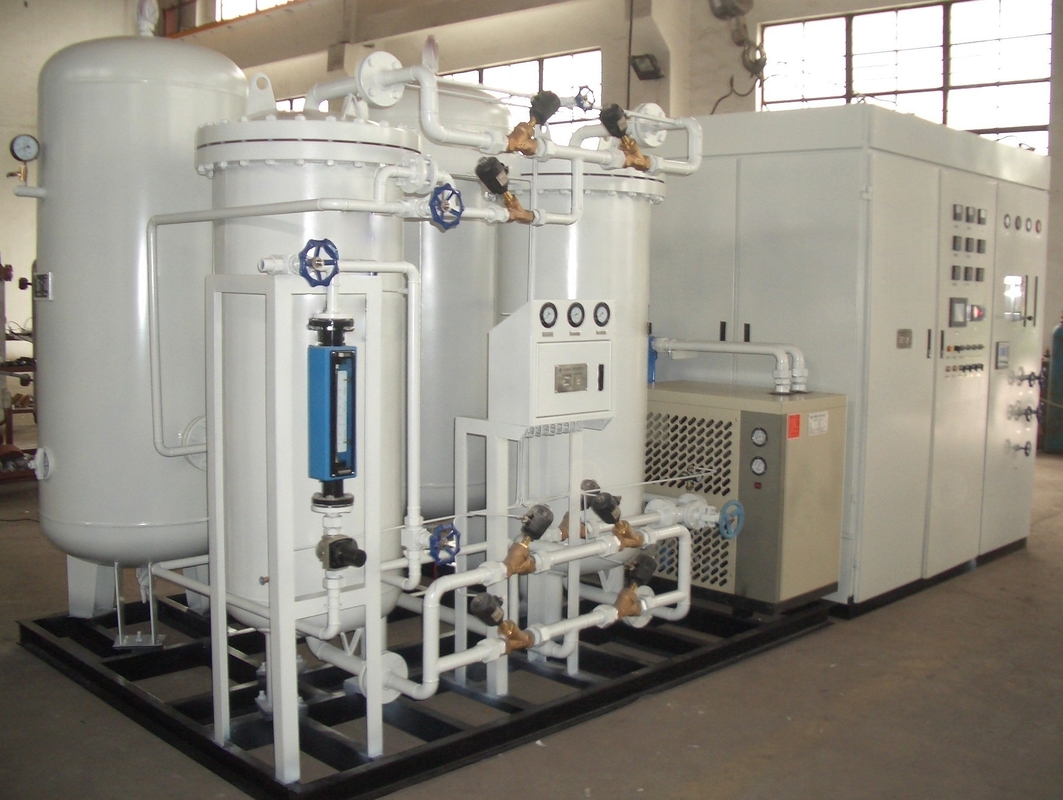

Food Industry Psa Nitrogen Generation System For Beer / Snack / Milk / Red Wine
PSA nitrogen generator for food Industry:
PSA Nitrogen Generator
| Model No | PN |
| Capacity | 3~3000Nm3/h |
| Purity | 95~99.9995% |
| Initial pressure | 0.05-0.8Mpa |
| DewPoint | -45°C |
| Remarks | For food industry |
Principles:
It uses carbon molecular sieve as sorbent, produces nitrogen by making use of
the PSA principle. Under certain pressure, carbon molecular sieve has different oxygen/nitrogen
adsorption capacity, i.e. much more oxygen adsorption capacity than nitrogen adsorption capacity.
PLC controls pneumatic valve open/close to realize two towers alternate adsorption and desorption as per
pressure change, carries out oxygen/nitrogen separation and produces nitrogen with desired purity. By equipping additional purification device( for removing bacterial, odor and dust), Clean N2 applicable for food protection is obtained.
Applications:
Food packaging, beer, vegetable, fruit and other food fresh keeping.
Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
.
