Suzhou Since Gas System Co.,Ltd
Provide reliable service&products for gas field,push industry civilization progress!
 |
| Place of Origin: | Suzhou, China |
| Nama merek: | SINCE |
| Sertifikasi: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Model Number: | PN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Harga: | Negotiate |
| Packaging Details: | Exported wooden case |
| Delivery Time: | 2 months after received down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets /per year |
| Bahan: | Baja karbon/Baja tahan karat | Sertifikat: | BV,,CCS,ISO,TS |
|---|---|---|---|
| Kapasitas: | 5-5000 Nm3/jam | Kemurnian: | 95%-99,9995% |
| Titik Embun: | -70 ℃ | Mengoperasikan daya: | 1KW |
| Aplikasi: | Industri perlakuan panas | ||
| Menyoroti: | sa pabrik nitrogen,sistem pembangkit nitrogen psa,Sistem Pembangkit Nitrogen Profesional |
||

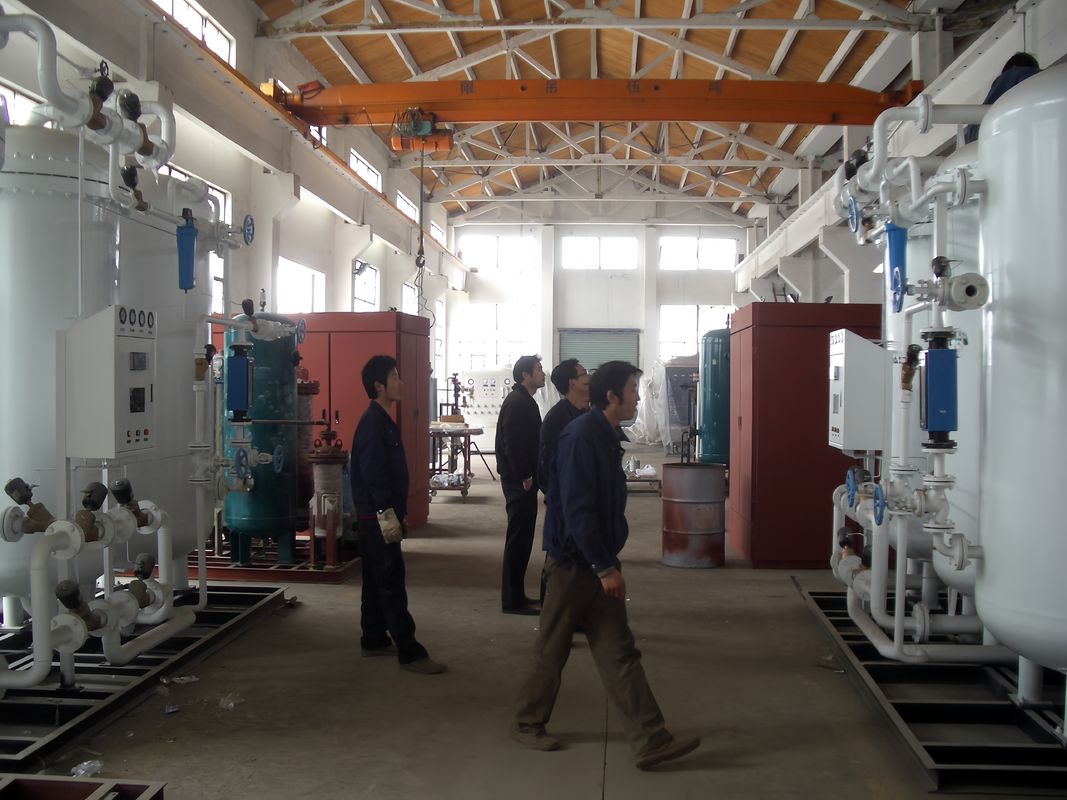

Professional Nitrogen Generation System For Heat Treatment Furnace
PSA nitrogen generator for heat treatment Industry:
1. Product Name: 99.999% PSA Nitrogen Plant
A full installation requires air compressor, refrigeration dryer, filters, air tank, nitrogen generator and
gas buffer tank.
2. Principle
When the process adopts lifting air, oxygen and nitrogen have different diffusion rate and adsorptive capacity to separate oxygen from nitrogen on carbon molecular sieve. When air is compressed to
0.8MPa, air source enters in pressure-swing adsorption tower for separation after being purified
through dry and oil-water separation process (filter). Oxygen molecules are diffused and adsorbedin carbon molecular sieve under pressure. Non-adsorbed nitrogen is discharged from outlet of adsorption tower. Oxygen is desorbed, discharged and purged in adsorption tower under depressurization. Moreover, adsorbent can be recycled.
3.Excellent Energy-saving Features Reduce Air Cost
1. Advanced process flow directly reduces compressed air consumption.
2. World famous molecular sieve ensures maximum energy-saving.
3. Advanced load adaptation technology further saves energy.
4. The most reliable air cleaning process ensures adsorbing efficiency and lifetime of molecular sieve.
5. National patent valve guarantees stable equipment operation.
6. Air tank ensures stable system air consumption.
7. Nitrogen buffer tank ensures stable system gas supply.
8. National patent compaction technology ensures long life of CMS.
9. Long-distance supervision and control.
10. Professional technologies ensure reliable gas supply.
11. Friendly human-machine interface.
Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
.
