Tempat asal: | Suzhou,China |
Nama merek: | SINCE-GAS |
Sertifikasi: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
Nomor model: | PA-A |
Kuantitas min Order: | 1 set |
---|---|
Harga: | Negotiate |
Kemasan rincian: | Normal exported wooden case |
Waktu pengiriman: | 2 months after received down payment |
Syarat-syarat pembayaran: | L/C, T/T, Western Union, MoneyGram |
Menyediakan kemampuan: | 1000 sets/year |
Bahan: | Baja karbon/Baja tahan karat | Kapasitas: | 5-5000Nm3/jam |
---|---|---|---|
Titik embun: | -70 ℃ | Negara: | Barang baru |
Metode operasi: | Sepenuhnya otomatis | Fungsi: | Turunkan titik embun |
Cahaya Tinggi: | Pengering Udara Desiccant,Pengering Udara Desiccant Regeneratif,Pengering Desiccant Regeneratif Dipanaskan |

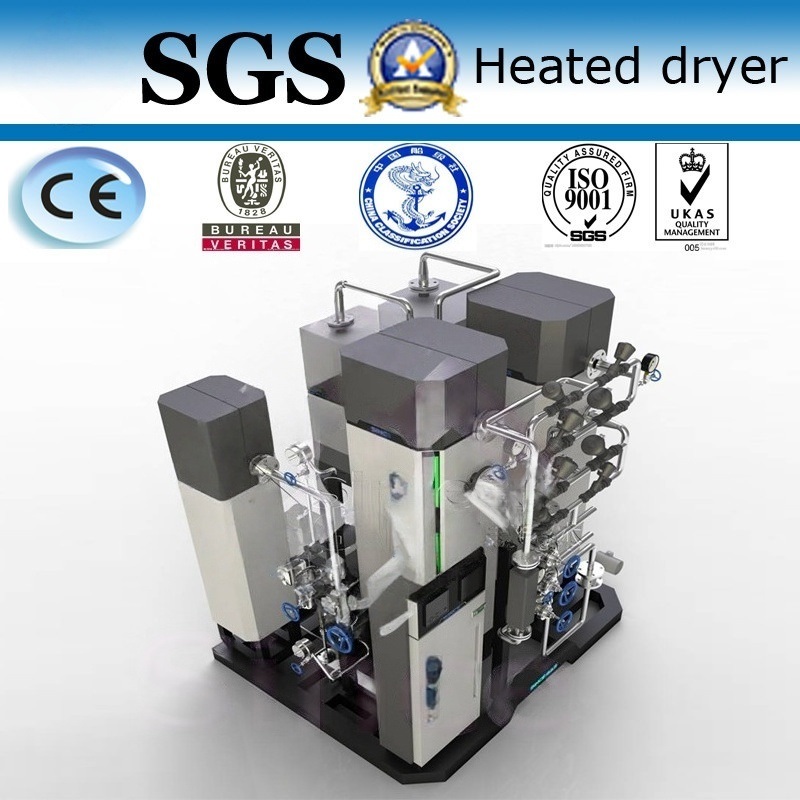

Heated Regenerative Desiccant Dryers / Carbon Steel Desiccant Air Dryers
Descriptions
SINCE Series heated adsorption air dryer includes an external electrical heater to heat dry purge air for
desiccant regeneration. Heating allows the dryers to consume only 6% of the dried compressed air volume
for this purpose significantly less than is required for heatless air dryers. The flow capacity is available
from 0.7 to 510m3/min,the outlet pressure dew point is - 40 deg c to -70 deg
.
High quality desiccants
High quality, extra activated alumina is respectively filled in each tower
Controller Reliable Timed controller Field proven over time, this design and technology maintain precise
control over all switching and purge valve functions. Opional for PLC controller,PLC Controlling system
executes and monitors all dryer functions,
7 Touch screen panel displays dryer status.
Pressure Gauges
Stainless steel gauges, located on each tower, provide visual indication of pressure during drying and
regeneration processes.
Product clean&pure compressed air
Pressure:≤9bar
Normal pressure dew point:≤-40— -70℃
Capacity :5-5000Nm3/H
During the last 10 years,about 98% old customers firmly choose SINCE
Why they always choose SINCE?
Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom
company who got ,TS (Manufacture License of special equipment)
CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen
generator.
Excellent infrastructure set up teamed by experienced and qualified engineers.
Sophisticated and developed R&D wing in assistance for installation and use of plants.
