99.9995% Purity PSA Nitrogen Generator for Laser Cutting

99.9995% Purity PSA Nitrogen Generator for Laser Cutting

sa pabrik nitrogen

sistem pembangkitan nitrogen psa

Generator Nitrogen Tekanan Tinggi 100 Nm3/h

Place of Origin:

Suzhou,China

Nama merek:

SINCE-GAS

Sertifikasi:

CE,ABS,CCS,BV,DNV,ASME,GOST,

Model Number:

PN-100-595

Hubungi kami
Permintaan Penawaran
Detail Produk
Purity:
99.9995%
Capcity:
100 Nm3/h
Material:
Carbon steel
Operation method:
Fully automatic
Application:
Laser cutting
Operate pressure:
22 bar
Menyoroti:

sa pabrik nitrogen

,

sistem pembangkitan nitrogen psa

,

Generator Nitrogen Tekanan Tinggi 100 Nm3/h

Syarat Pembayaran & Pengiriman
Minimum Order Quantity
1 set
Harga
Negotiate
Packaging Details
Normal exporting package
Delivery Time
2 months after received down payment
Payment Terms
L/C,T/T,Western Union,MoneyGram
Supply Ability
1000 sets/year
Deskripsi produk

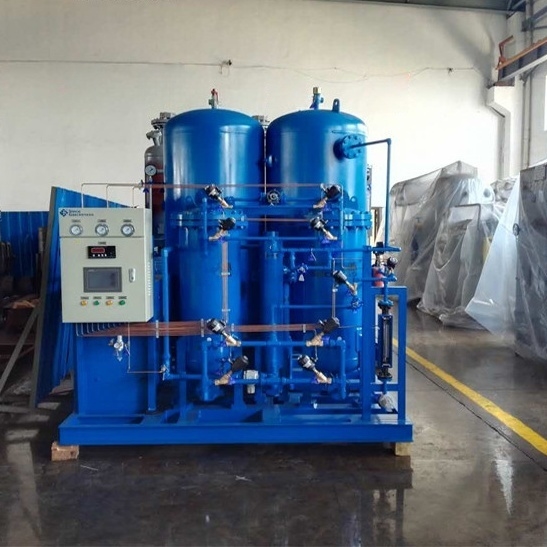

Heat Treatment High Purity PSA Nitrogen Generator / High Pressure Nitrogen Generator
Product Specifications
Attribute Value
Purity 99.9995%
Capacity 100 Nm3/h
Material Carbon steel
Operation method Fully automatic
Application Laser cutting
Operate pressure 22 bar
Product Description

Our heat treatment high purity with high pressure laser cutting nitrogen generator offers exceptional performance for industrial applications.

Key Features
  • High purity nitrogen generation
  • Excellent energy-saving performance
  • Smooth operation with long service life
  • Fully automatic operation
  • ISO9001:2008 certified

The system operates on the principle of pressure swing adsorption (PSA) technology. Nitrogen (N2) and oxygen (O2) both have quadrupole moments, with N2 (0.31 Å) being larger than O2 (0.10 Å). This difference causes the molecular sieve to adsorb N2 more strongly than O2.

When compressed air flows through the adsorption bed containing molecular sieve at specific pressures, N2 is absorbed while O2 passes through. The system consists of two towers filled with molecular sieve that alternate between adsorption and regeneration cycles to produce continuous nitrogen flow.

Technical Specifications
No Model Capacity (Nm3/h) Purity Power (KW) Overall size (mm)
1 PN-3-39 3 99.9% 0.5 1800*1400*1500
2 PN-5-29 5 99.5% 0.5 1800*1400*1500
3 PN-5-295 5 99% 0.5 1800*1400*1500
4 PN-8-295 8 95% 0.5 1800*1400*1500
Technical Characteristics
  • Unique molecular sieve protection extends service life
  • Self-reliance cylinder pressure device prevents molecular sieve pulverization
  • DCS remote control system interface for monitoring
  • Intelligent interlocking nitrogen vent ensures quality
  • Energy-efficient design reduces operating costs
  • Compact structure for easy transportation and installation
  • Reliable components ensure stable operation with fault alarms
  • High automation level enables unmanned operation
Applications

Heat treatment, laser cutting machines, and other industrial processes requiring high purity nitrogen.

99.9995% Purity PSA Nitrogen Generator for Laser Cutting 0
For more information, please contact Since Gas System Co., Ltd or email us directly.
