Tempat asal: | Suzhou |
Nama merek: | SINCE GAS |
Sertifikasi: | CE,,BVC,ABS,CCS,LR,DNV,LR,ASME |
Nomor model: | PN-60-49 |
Kuantitas min Order: | 1 set |
---|---|
Harga: | negotiate |
Kemasan rincian: | exporting standard packing |
Waktu pengiriman: | within 2-3 months |
Syarat-syarat pembayaran: | L/C, T/T, Western Union, MoneyGram |
Menyediakan kemampuan: | 80 sets per month |
Bahan: | Baja karbon | Sertifikat: | CE,ABS,ASME,BV |
---|---|---|---|
Kemurnian: | 99,9995% | Aplikasi: | Anil metalurgi |
Bidang: | Daya (Besi, tembaga, tungsten, molibdenum,), perangkat keras, komponen berat | Warna: | Abu-abu/Putih |
Kode desain: | ASME/CE/GB | Produk: | Perangkat keras, suku cadang berat, militer, kedirgantaraan, dll |
Cahaya Tinggi: | pabrik nitrogen,sistem pembangkitan nitrogen psa,Generator Nitrogen Kemurnian Tinggi ASME |

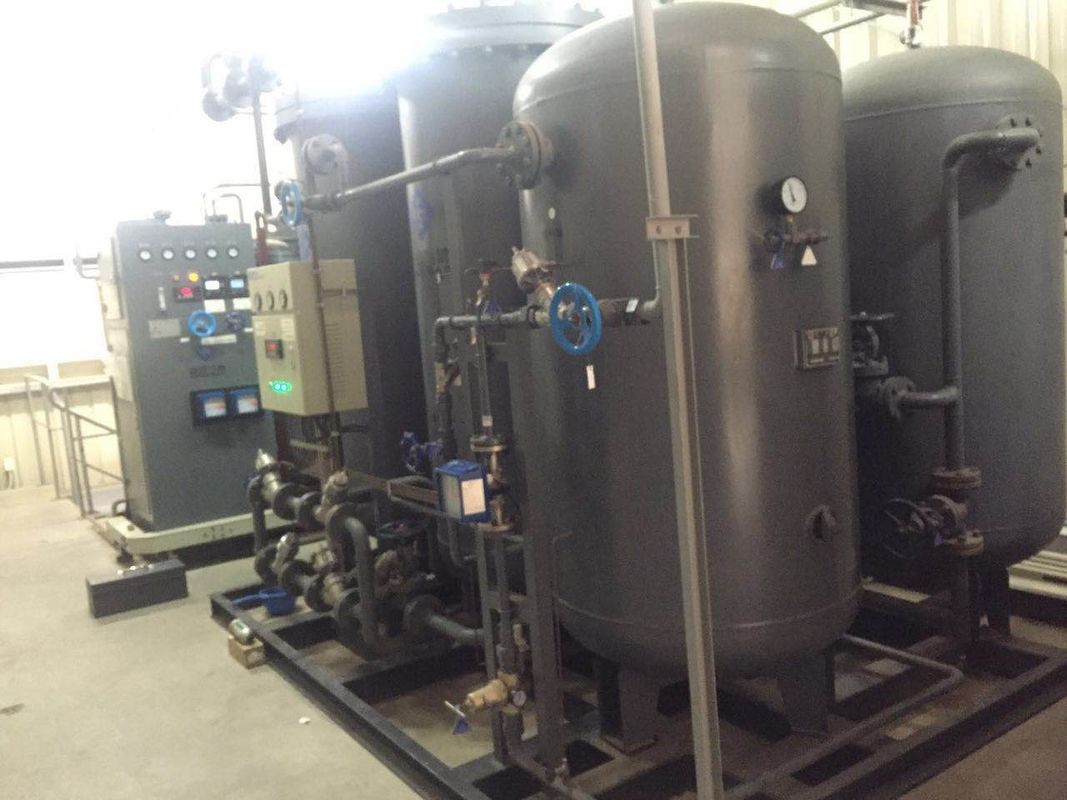

Metallurgy production nitrogen generator used for emergency&annealing
Nitrogen generation system uses pressure swing adsorption principles at normal temperatures, along with clean, compressed air as the raw material, and a carbon molecular sieve as the adsorbent, the adsorbent we use from Japan & German guarantee the working life over 20 years,
Due to oxygen and nitrogen different sieves, CMS under pressure adsorbing the oxygen pass through nitrogen, by pneumatic valve control PLC system to get required nitrogen purity .
Technical characteristics
1. Unique molecular sieve protective measures so as to lengthen the service life of carbon molecular sieve.
2. Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out , it can not cause of molecular sieve pulverization phenomenon. equipped with the limit settlement alarm system,when it reach the floor level of journey,the equipment will sound and light alarm by itself.
3. Configured DCS remote control system interface,it can monitor the system operate condition through the computer.
4. Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen.
5. Perfect process design and excellent energy conservation characteristics reduce the cost of gas.
6. Reasonable structure design make the transportation, sling and installation very convenient.
7. Selecting the safe and reliable control components, so the equipment can run stable and reliable,it also has various fault alarm.
8.It operates easily, runs stably, and has a high degree of automation, can realize no one operates.
Specifications:
No | Model | Capacity(Nm3/h) | Purity | Power(KW) | Overall size(mm) |
1 |
PN-3-39 |
3 |
99.9% |
|
|
5 |
PN-5-49 |
5 |
99.99% |
|
|
9 |
PN-10-49 |
10 |
99.99% |
|
|
13 |
PN-15-49 |
15 |
99.99% |
0.5 | 2100*1800*2200 |
17 |
PN-20-49 |
20 |
99.99% |
0.5 | 2200*1800*2200 |
21 |
PN-30-49 |
30 |
99.99% |
0.5 | 2400*1900*2200 |
25 |
PN-40-49 |
40 |
99.99% |
0.5 | 2500*2100*2500 |
29 |
PN-50-49 |
50 |
99.99% |
|
|
33 |
PN-60-49 |
60 |
99.99% |
|
|
37 | PN-80-49 | 80 | 99.99% | 0.5 | |
38 |
PN-120-39 |
120 |
99.9% |
|
|
41 |
PN-100-49 |
100 |
99.99% |
|
|
... | ... | ... | ... | ... | ... |
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
During the last 10 years,about 98% old customers firmly choose SINCE
Why they always choose SINCE?
Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom company who got ,TS (Manufacture License of special equipment) CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen generator.
Excellent infrastructure set up teamed by experienced and qualified engineers.
Sophisticated and developed R&D wing in assistance for installation and use of plants.
