Name: EPB-40MZ Modular PSA Nitrogen Generator 40Nm3/h 98% Purity with Energy Saving VP Control
Brand: JoShining Energy & Technology Co.,Ltd
SKU: EPB-40MZ
Price: 38500.00 USD
Availability: InStock

Rumah > Produk > PSA Nitrogen Generator >

EPB-40MZ Modular PSA Nitrogen Generator 40Nm3/h 98% Purity with Energy Saving VP Control

Low Air-Nitrogen Ratio 4.2 to 1

VP Adaptive Energy Saving Control

Modular Aluminum Alloy Cavity Design

Tempat asal:

Guangdong, Tiongkok

Nama merek:

Joshining

Sertifikasi:

ISO 9001:2015, CE

Nomor model:

EPB-40MZ

Hubungi kami

Permintaan Penawaran

EPB-40MZ Modular PSA Nitrogen Generator 40Nm3/h 98% Purity with Energy Saving VP Control

Detail Produk

Laju aliran nitrogen:

40 Nm3/jam

Kemurnian nitrogen:

98% (95-99,999% tersedia)

Rasio Udara terhadap Nitrogen:

4.2:1 dengan kemurnian 99,99%.

Permintaan udara:

1,2 Nm3/menit

Tekanan adsorpsi:

0,7 MPa

Titik embun nitrogen:

-40 ° C hingga -70 ° C.

Sistem Pengendalian:

PLC dengan VP Logika Hemat Energi

bahan rongga:

Paduan Aluminium Kelas Penerbangan 6063-T5

Tingkat Kebisingan:

≤80 dB

Catu daya:

220V/380V 50HZ/60Hz

Dimensi (PxLxT):

400x1175x1810mm

Berat:

338KG

Koneksi outlet:

Rp1/2

Menyoroti:

Low Air-Nitrogen Ratio 4.2 to 1

VP Adaptive Energy Saving Control

Modular Aluminum Alloy Cavity Design

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 set

Harga

USD 38500.00 / Set

Kemasan rincian

kotak kayu lapis kelas ekspor dengan penghalang kelembapan bersegel vakum, sisipan busa tahan guncan

Waktu pengiriman

15-25 hari kerja setelah setoran

Syarat-syarat pembayaran

T/T,L/C

Menyediakan kemampuan

100 set per bulan

Produk terkait

EPV-15MZ+ Plus Twin Tower PSA Nitrogen Generator with 99.999% Ultra High Purity and 15Nm3/h Flow Rate Featuring PLC Control

Dapatkan Harga Terbaik

Generator nitrogen PSA di lokasi untuk pemotongan laser serat dengan kemurnian 99,99% dan penghematan biaya 90%

Dapatkan Harga Terbaik

Smart Size Portable PSA Nitrogen Gas Plant Pengoperasian Otomatis

Dapatkan Harga Terbaik

Video

Nitrogen Generator Kemurnian 99.9995 Industri Listrik Lithium

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Deskripsi produk

EPB-40MZ Modular PSA Nitrogen Generator 40Nm³/h 98% Purity 4.2:1 Air Ratio Energy Saving VP Control

EPB-40MZ Modular PSA Nitrogen Generator — Industry-Leading Energy Efficiency

The EPSEA EPB-40MZ is a modular Pressure Swing Adsorption (PSA) nitrogen generator engineered for maximum energy efficiency. With a class-leading 4.2:1 air-to-nitrogen ratio at 99.99% purity, it consumes 15% less compressed air than conventional twin-tower systems (5:1 ratio), directly reducing operational energy costs.

Key Energy-Saving Technologies

VP Control Logic

Adapts to real-time load fluctuations, automatically regulating switching cycles to reduce air consumption by 15-50% under partial-load conditions.

Optimized Air Ratio

High-performance carbon molecular sieve achieves 4.2:1 air-to-nitrogen ratio — vs. industry average 5:1 — requiring only 2.8Nm³/min compressed air for 40Nm³/h N₂ output.

Auto Standby Mode

Intelligent controller automatically pauses operation when nitrogen demand drops, eliminating idle energy waste.

Average Split Flow

Patented diffusion technology maximizes adsorbent utilization, ensuring every gram of carbon molecular sieve works efficiently.

Technical Specifications

Nitrogen Flow: 40 Nm³/h
Nitrogen Purity: 98% (up to 99.999%)
Air Demand: 1.2 Nm³/min
Adsorption Pressure: 0.7 MPa
Nitrogen Dew Point: -40°C to -70°C
Cavity Material: 6063-T5 Aluminum Alloy
Control System: PLC + HMI Touch Screen
Dimensions: 400 * 1175 * 1810 mm
Weight: 338 kg
Power Supply: 220V/380V 50Hz/60Hz

Built for Industrial Reliability

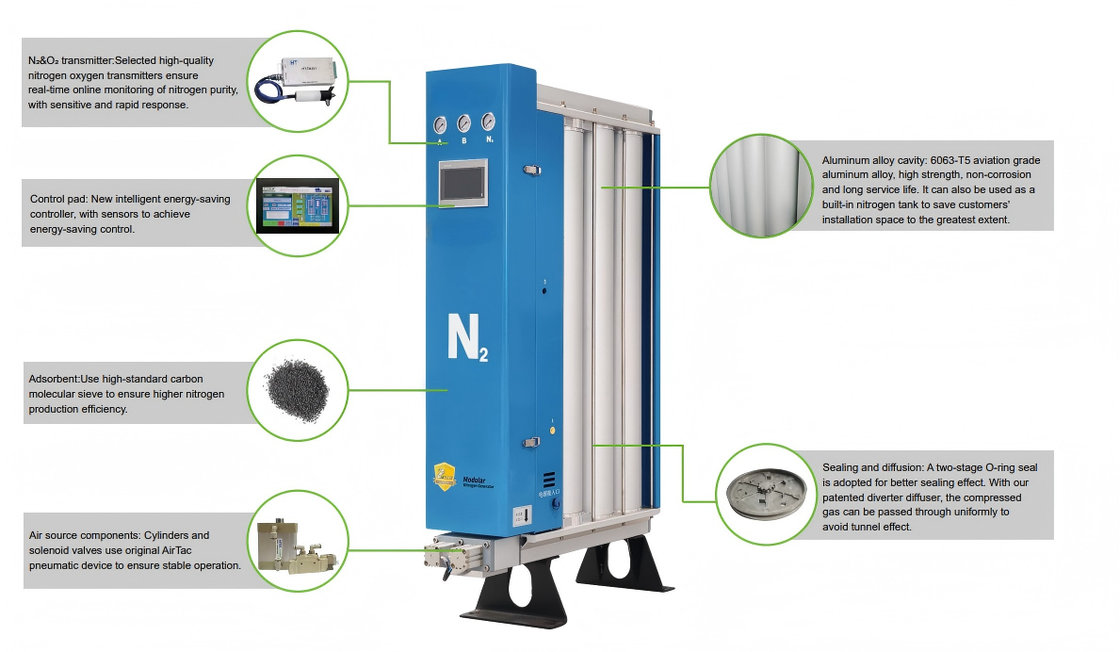

The modular aluminum alloy cavity design eliminates internal corrosion risks, extending service life beyond 20 years. Unlike traditional pressure vessel designs, the module requires no annual pressure vessel inspection, saving both time and compliance costs. Integrated high-resolution HMI provides real-time monitoring of nitrogen pressure, purity, flow rate, and system status with automatic unqualified nitrogen evacuation.

Energy Comparison: A 40Nm³/h EPB-40MZ modular system consumes only 2.8Nm³/min of compressed air, while an equivalent twin-tower system requires 3.3Nm³/min — that's 15% less energy for the same output. With VP control logic engaged, air savings can reach up to 50% under partial-load operation.
