Sistem Pembangkit Nitrogen Pembangkit Gas Nitrogen Psa Untuk Aluminium Strip, Bar, Sheet

sistem pembangkitan nitrogen psa

generator gas nitrogen psa

Generator Gas Nitrogen BV Psa

Place of Origin:

Suzhou, China

Nama merek:

SINCE

Sertifikasi:

CE,ABS,CCS,BV,DNV,ASME,GOST,

Model Number:

Hubungi kami

Permintaan Penawaran

Sistem Pembangkit Nitrogen Pembangkit Gas Nitrogen Psa Untuk Aluminium Strip, Bar, Sheet

Detail Produk

Material:

Carbon steel/Stainless steel

Certificates:

BV,,CCS,ISO,TS

Capaicty:

5-5000 Nm3/h

Purity:

95%-99.9995%

Dew point:

-70 ℃

Operate power:

1 KW

Application:

Aluminum strip,sheets,bar industry

Menyoroti:

sistem pembangkitan nitrogen psa

generator gas nitrogen psa

Generator Gas Nitrogen BV Psa

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1 set

Harga

Negotiate

Packaging Details

Exported wooden case

Delivery Time

2 months after received down payment

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

1000 sets /per year

Produk terkait

Video

Nitrogen Generator Kemurnian 99.9995 Industri Listrik Lithium

Dapatkan Harga Terbaik

Penghematan Energi PSA Nitrogen Generator Untuk Pengolahan Makanan Dan Minuman

Dapatkan Harga Terbaik

Unit hemat energi Pabrik Nitrogen PSA Nitrogen industri

Dapatkan Harga Terbaik

Sistem Generator Nitrogen PSA Kemurnian Tinggi Untuk Industri Perlakuan Panas

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Deskripsi produk

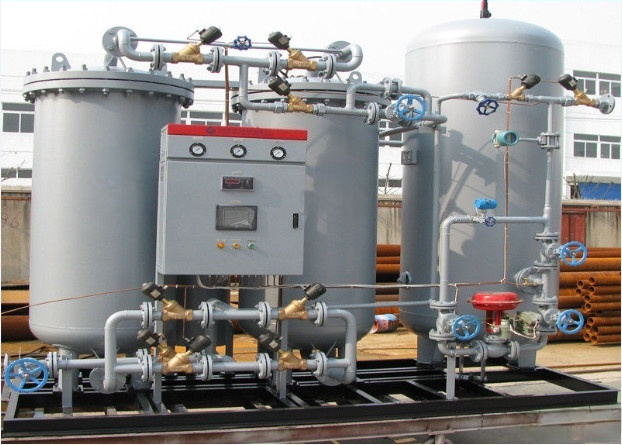

PSA Nitrogen Gas Generator for Aluminum Processing

Product Attributes

Attribute	Value
Material	Carbon steel/Stainless steel
Certificates	BV, CCS, ISO, TS
Capacity	5-5000 Nm3/h
Purity	95%-99.9995%
Dew point	-70 ℃
Operate power	1 KW
Application	Aluminum strip, sheets, bar industry

Key Features

Purity: 95%-99.9995%
Capacity: 5~3000Nm3/h
Outlet Pressure: 0.1-0.7Mpa (Adjustable)
Low compressed air consumption
Durable components with long service life

Working Principle

The PSA nitrogen generator uses air as its raw material. By utilizing the selective absorption characteristic of carbon molecular sieve, this process separates nitrogen and oxygen based on the principle that pressurization gives absorption and depressurization gives desorption.

Technical Characteristics

Incorporates German nitrogen generation technology and molecular sieve filling process for maximum recycling rate and minimal pulverization rate, ensuring over 10 years machine life
Features adjustable and detachable absorption tower technology that maintains molecular sieve stability and eliminates mechanical wear
Incorporates vortex emission discharge for efficient gas replenishment, reducing consumption and extending air compressor standby time
Optional fully automatic operation with remote control system for 24-hour monitoring of flow rate, purity, pressure, and automatic discharge of nonconforming nitrogen

Technical Specifications

Nitrogen Output: 5~3000Nm³/h
Nitrogen Purity: ≥ 99.9995%
Oxygen Content: ≤ 5 ppm
Carbon Dioxide Content: ≤ 1 ppm
Dew Point: ≤ -70 ºC

Model Specifications

No	Model	Capacity (Nm3/h)	Purity	Power (KW)	Overall Size (mm)
1	PN-3-39	3	99.9%	0.5	180014001500
2	PN-5-29	5	99.5%	0.5	180014001500
3	PN-5-295	5	99%	0.5	180014001500
4	PN-8-295	8	95%	0.5	180014001500
5	PN-5-49	5	99.99%	0.5	180014001800
6	PN-8-39	8	99.9%	0.5	180014001800
7	PN-12-295	12	99.5%	0.5	180014001800
8	PN-15-29	15	99%	0.5	180014001800
9	PN-10-49	10	99.99%	0.5	200017002250
10	PN-15-39	15	99.9%	0.5	200017002250

Note: For more information about additional models, please contact Since Gas System Co., Ltd or send us an email directly.
