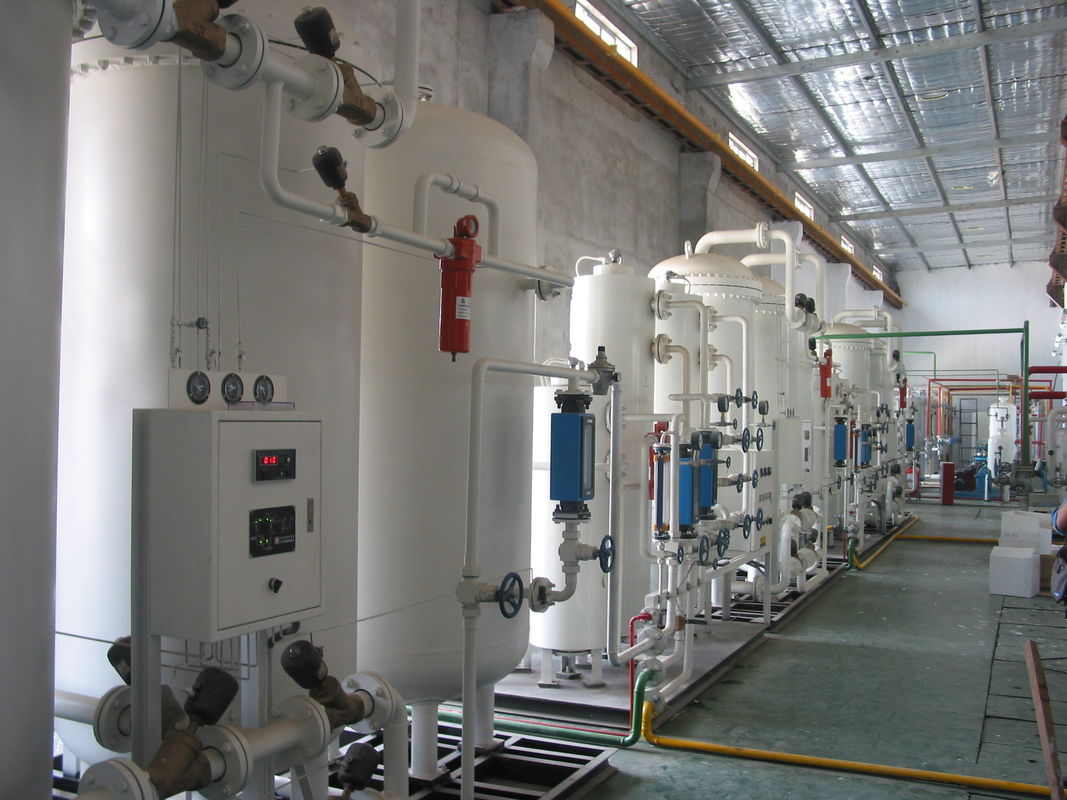

Nitrogen Generation Unit PSA Nitrogen Generator High Purity 99.9995%
1. PSA nitrogen generator for fire works Industry:
The Whole Nitrogen Generation System Includes :
Air Compressor
Air Dryer & Precision Filters
Air tank
Nitrogen Generator
Gas buffer tank
Nitrogen storage vessel
2. Nitrogen Generator Introduction:
The Nitrogen Generator is based on PSA (Pressure Swing Adsorption) Technology, which uses some specific molecular sieves (CMS) to separate the nitrogen gas from the air. It is more and more popular used for on-site nitrogen supply and filling nitrogen cylinders.
Our PSA Nitrogen Generator consists of air compressor, air dryer, air filters, PSA nitrogen generator and related control system. The patented vessel design enable our PSA Nitrogen Generator a lowest energy consumption and best efficiency.
Nitrogen Generator specifications:
1. Nitrogen capacity: 2~1000Nm3/h
2. Nitrogen purity: 90%, 99%, 99.5%, 99.9%, 99.99%, 99.999%...
3. Nitrogen pressure from the Nitrogen Generator: 1-7bar
4. Skid-mounted enable an easy installation and transportation.
Features of our Nitrogen Generator:
(1) The Nitrogen Generator is equipped with a stable Atlas Copco screw air compressor;
(2) The Nitrogen Generator is equipped with Siemens PLC and SMC or CKD valves;
(3) Fewer moving parts enable the Nitrogen Generator more reliable and less maintenance jobs;
(4) The NitrogenGenerator does not need foundation base;
(5) The Nitrogen Generator does not need cooling water;
(6) The Nitrogen Generator is skid-mounted, very easy to be transported and installed;
(7) The Nitrogen Generator is very easy to be operated, unmanned operation can be realized;
(8) Consumable parts: only filter elements, replaced every 6000-8000hours.
Maintenance cost is very low.
Specifications:
|
No
|
Model
|
Capacity(Nm3/h)
|
Purity
|
Power(KW)
|
Overall size(mm)
|
|
1
2
3
4
|
PN-3-39
PN-5-29
PN-5-295
PN-8-295
|
3
5
5
8
|
99.9%
99.5%
99%
95%
|
0.5
|
1800*1400*1500
|
|
5
6
7
8
|
PN-5-49
PN-8-39
PN-12-295
PN-15-29
|
5
8
12
15
|
99.99%
99.9%
99.5%
99%
|
0.5
|
1800*1400*1800
|
|
9
10
11
12
|
PN-10-49
PN-15-39
PN-25-295
PN-30-39
|
10
15
25
30
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2000*1700*2250
|
|
13
14
15
16
|
PN-15-49
PN-22-39
PN-35-295
PN-45-29
|
15
22
35
45
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2100*1800*2200
|
|
17
18
19
20
|
PN-20-49
PN-30-39
PN-50-295
PN-60-29
|
20
30
50
60
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2200*1800*2200
|
|
21
22
23
24
|
PN-30-49
PN-45-39
PN-75-295
PN-88-29
|
30
45
75
88
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2400*1900*2200
|
|
25
26
27
28
|
PN-40-49
PN-60-39
PN-100-295
PN-120-29
|
40
60
100
120
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2500*2100*2500
|
|
29
30
31
32
|
PN-50-49
PN-70-39
PN-120-295
PN-140-29
|
50
70
120
140
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2600*2200*2850
|
|
33
34
35
36
|
PN-60-49
PN-90-39
PN-160-295
PN-190-29
|
60
90
160
190
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2800*2200*2500
|
|
37
|
PN-80-49
|
80
|
99.99%
|
0.5
|
|
|
38
39
40
|
PN-120-39
PN-200-295
PN-250-29
|
120
200
250
|
99.9%
99.5%
99%
|
0.5
|
3200*1400*2800
|
|
41
42
43
44
|
PN-100-49
PN-140-39
PN-250-295
PN-290-29
|
100
140
250
290
|
99.99%
99.9%
99.5%
99%
|
0.5
|
3500*1500*2800
|
|
...
|
...
|
...
|
...
|
...
|
...
|
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly
|
.
